VirtualWall

The VirtualWall testbed is deployed over Fed4Fire with the jFed tooling.

Create a Fed4Fire Account

Visit https://portal.fed4fire.eu/ to register for a Fed4Fire account. Create a request to join the scion project and wait for approval.

Setup jFed for Testbed Deployment

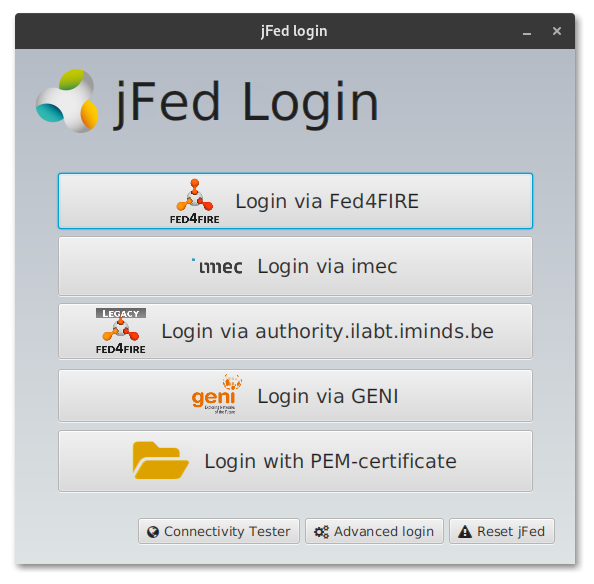

If the creation of your Fed4Fire account was successful, download and install the jFed GUI on your system. Run the experimenter-gui and login with your Fed4Fire account:

$ java -jar experimenter-gui.jar

jFed Login

When login succeeds an empty jFed window should open up.

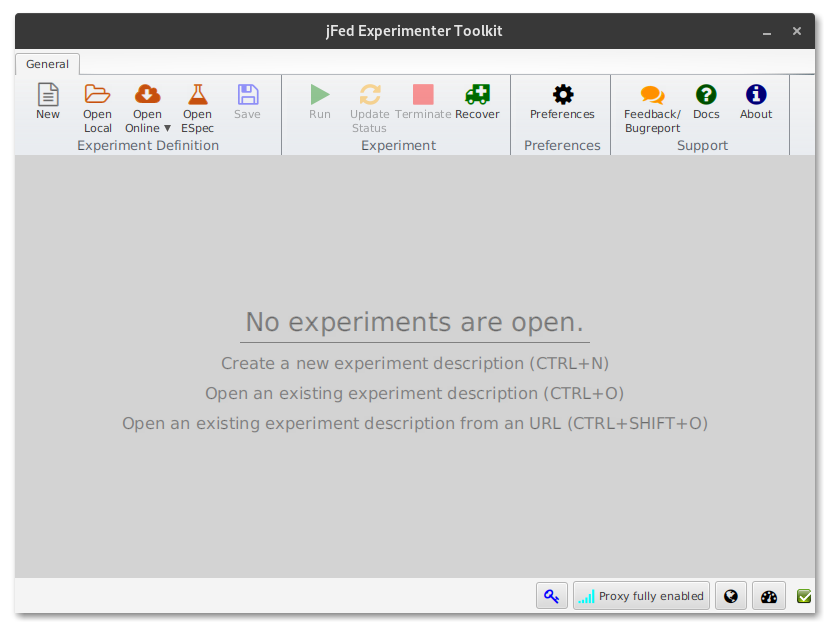

jFed Startup

Load the Testbed and Run it

In order to load up and run an experiment, open up the ScionLab VirtualWall default configuration by clicking on Open Local in the toolbar. If successful, the following network configuration should show up:

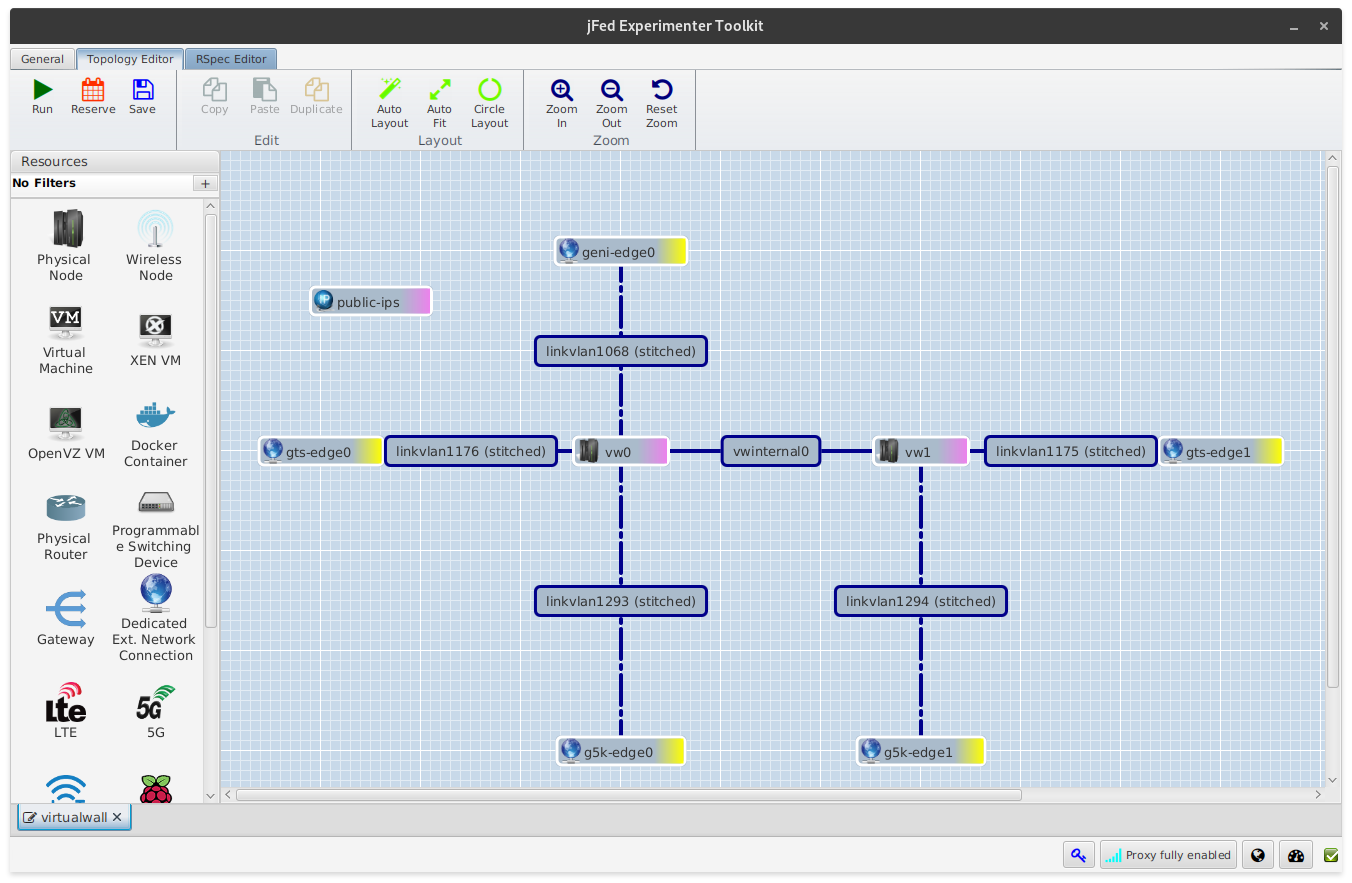

jFed ScionLab Configuration

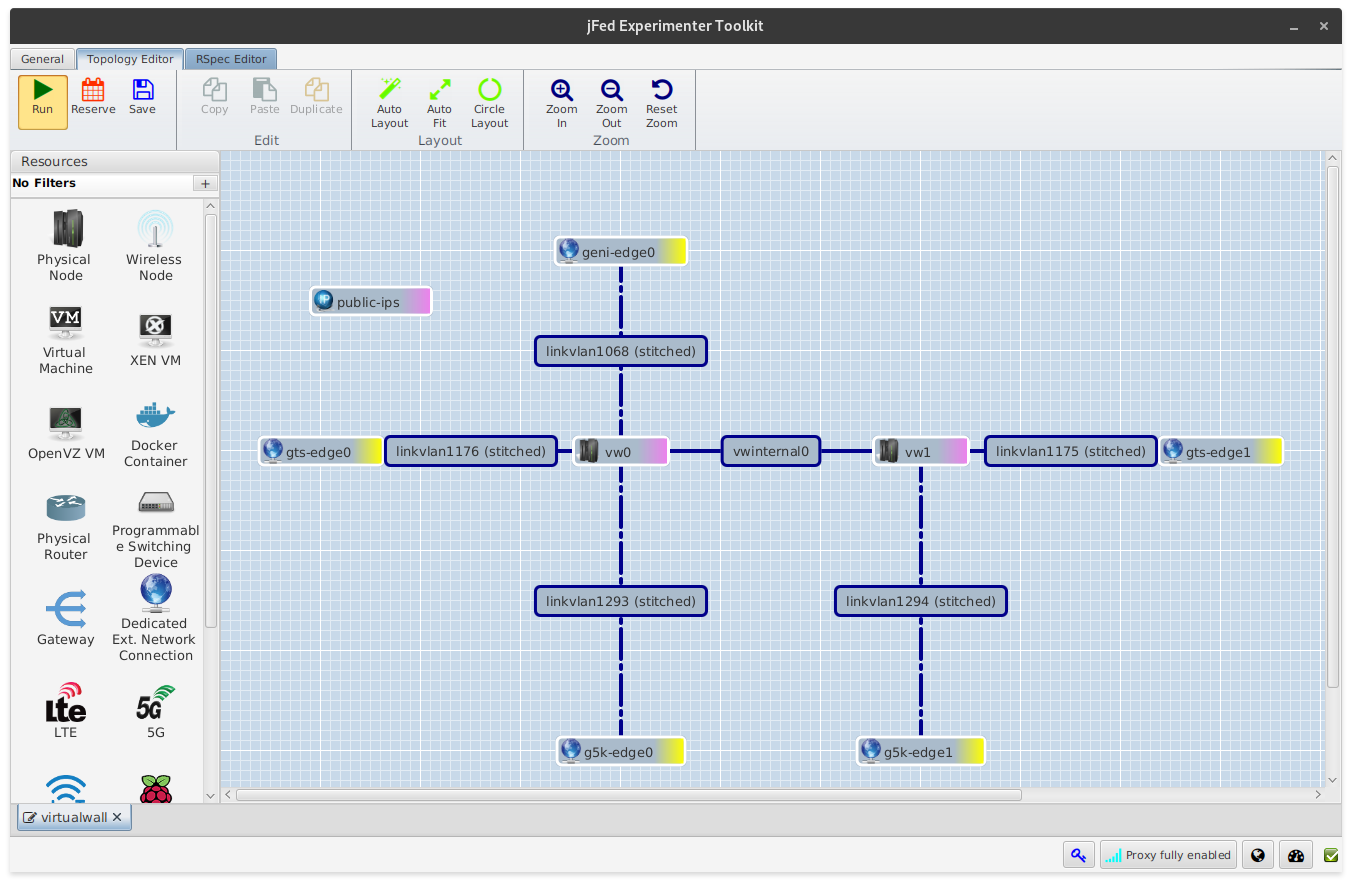

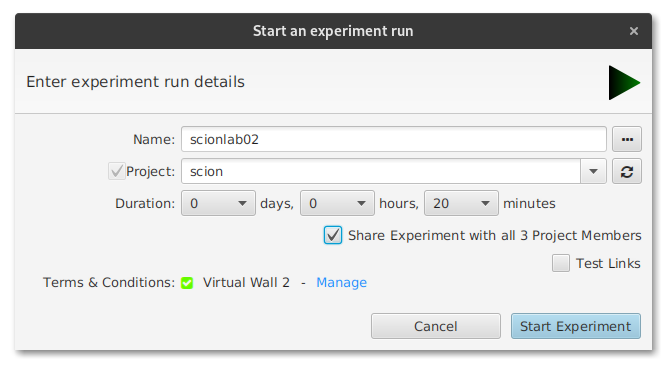

To run the configuration, click on Run and set an experiment name.

jFed Run Button

jFed Run Experiment

Tip

Always use a different experiment name to avoid hiccups with the jFed tooling.

It may take up to 15 minutes for an experiment to fully start. Take a coffee and be patient.

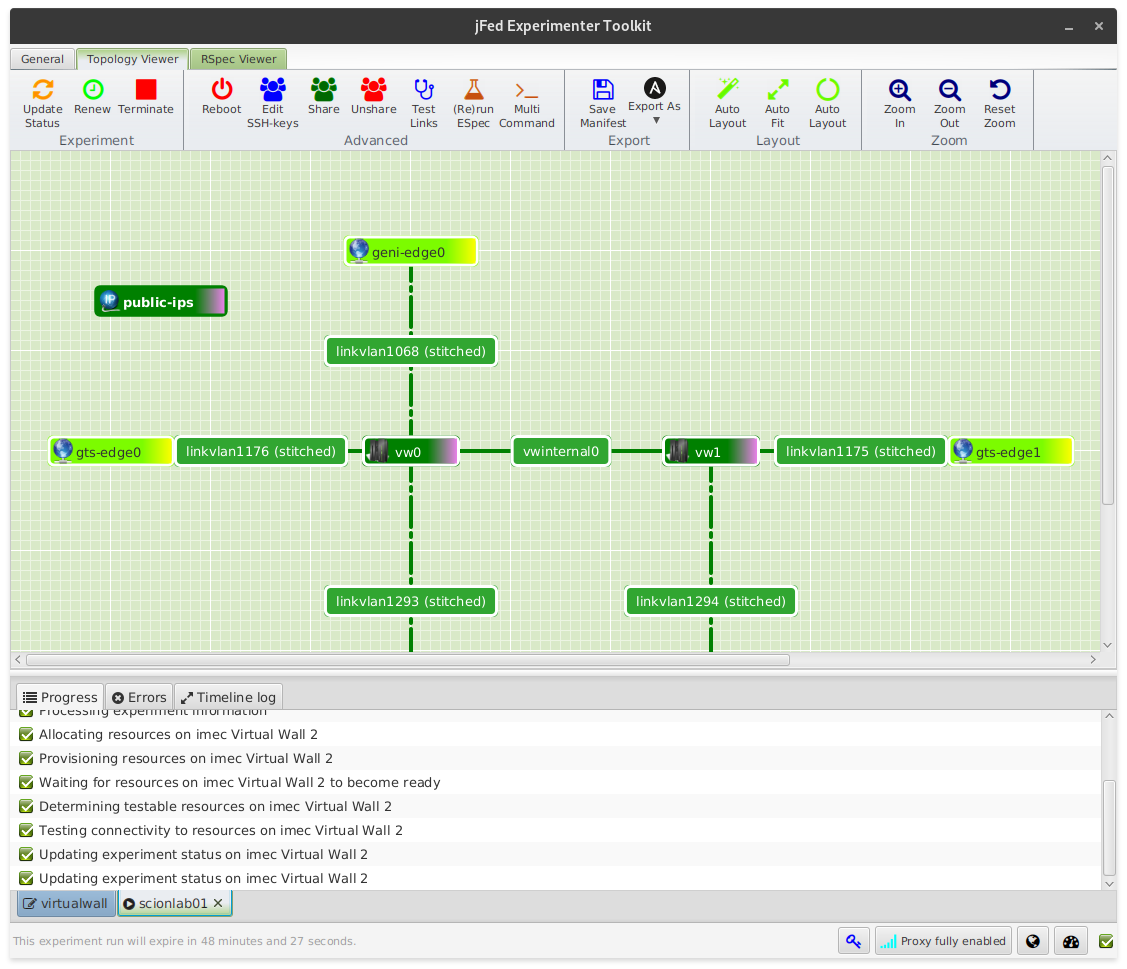

After some time all nodes and edges should eventually become green.

jFed Successful Experiment

View the Status of an Already Running Experiment

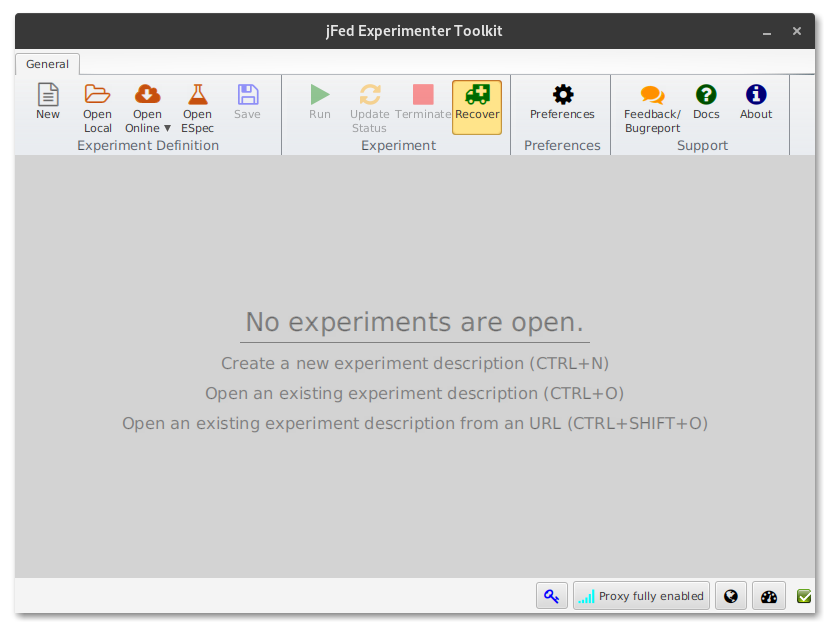

In jFed you can recover a running experiment by selecting the Recover button in the General tab. Select the desired experiment and start recovering it.

jFed Recover Button

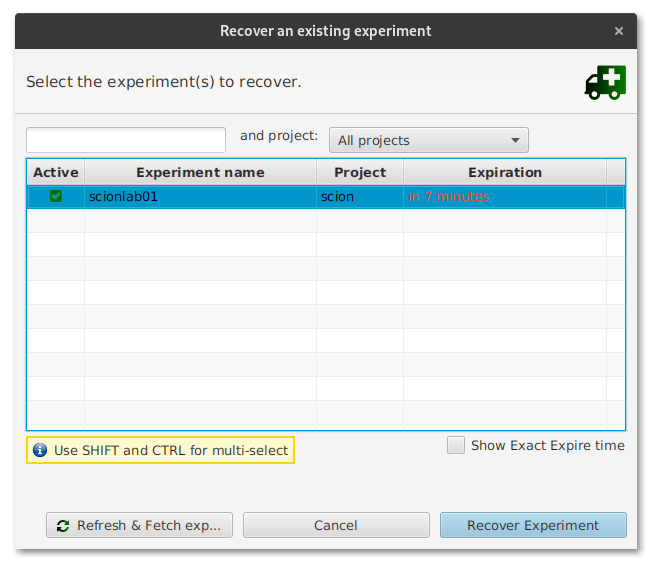

jFed Recover Experiment

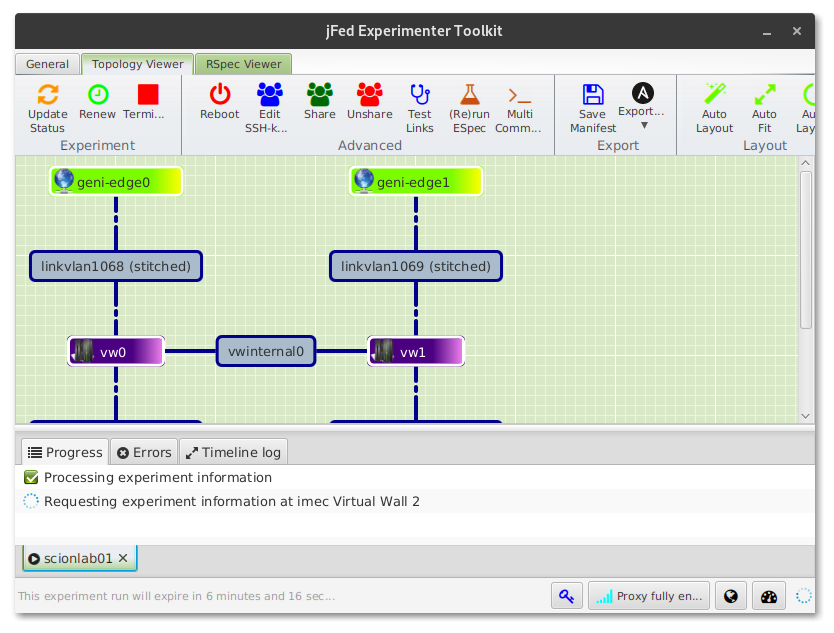

It will take a couple of minutes to query the status of a running experiment. Take a coffee and be patient.

jFed Recovering Experiment

Configure VirtualWall Machines

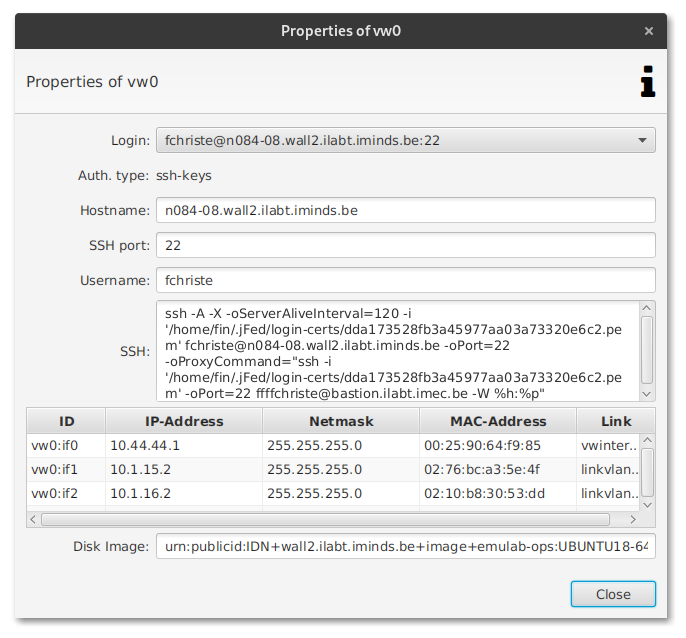

To access a running machine, right-click on the node in the topology viewer and select Open SSH terminal. If this is not working, select Show Node Info and copy the contents of the SSH field into your terminal.

Warning

Please note that when using this method you must have access to IPv6 addresses, as the VirtualWall servers are only accessible over IPv6. Alternatively, you can use an IPv4 proxy to access the nodes by setting it in the jFed preferences. See the jFed documentation for details.

jFed Node Info

If you would like to access the machines over one of the external links to GTS or Grid5000, ssh on the machines with the scionlab user and the IP addresses provided in the ScionLab Topology Overview. The authentication is based on your public SSH key. If you don't have access to the machines but believe you should be able to access them, contact the ScionLab administrators.

Updating a VirtualWall Machine

When right-clicking on a node in the Topology Editor you can configure a node's properties.

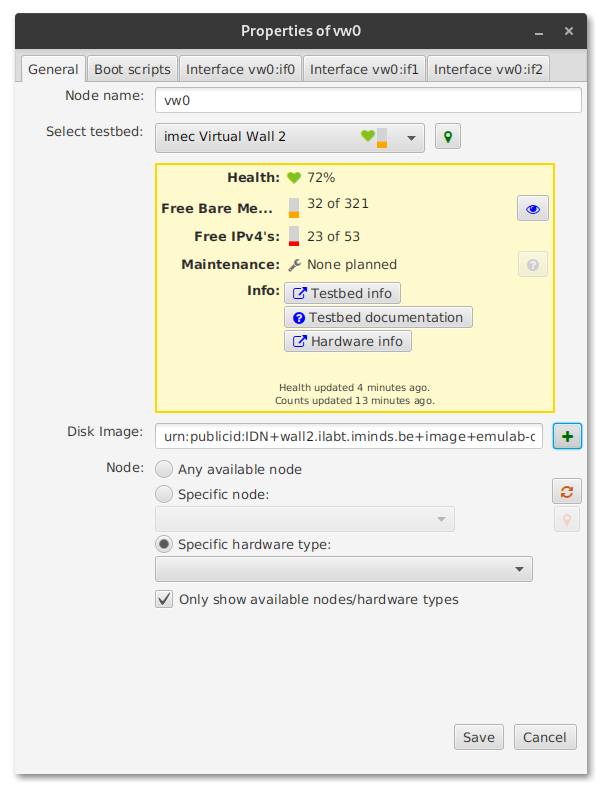

jFed Node Properties

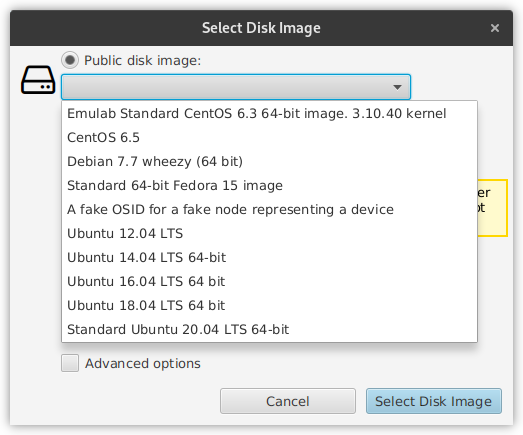

By clicking on the + next to the Disk Image field, you can choose a different GNU/Linux distribution for your node.

jFed Disk Image Selection

Alternatively, you can just run the normal distribution upgrade tools for your preferred GNU/Linux distribution.

TODO

The machines survive a reboot, right?

Creating Your Own Custom Testbed Configuration

TODO

List common pitfalls here

  • configuration of Grid5000 nodes is not possible from within jFed as VLAN stitching is not supported via the Fed4Fire API
  • Stitching links to any other locations but VirtualWall1 or VirtualWall2 and external network edges is mostly not working
  • It is possible to create stitched links via a single VLAN to the ExoGeni nodes in UvA
    • However, no further connection is possible in UvA via jFed
  • InstaGeni nodes cannot be connected to any other testbed
